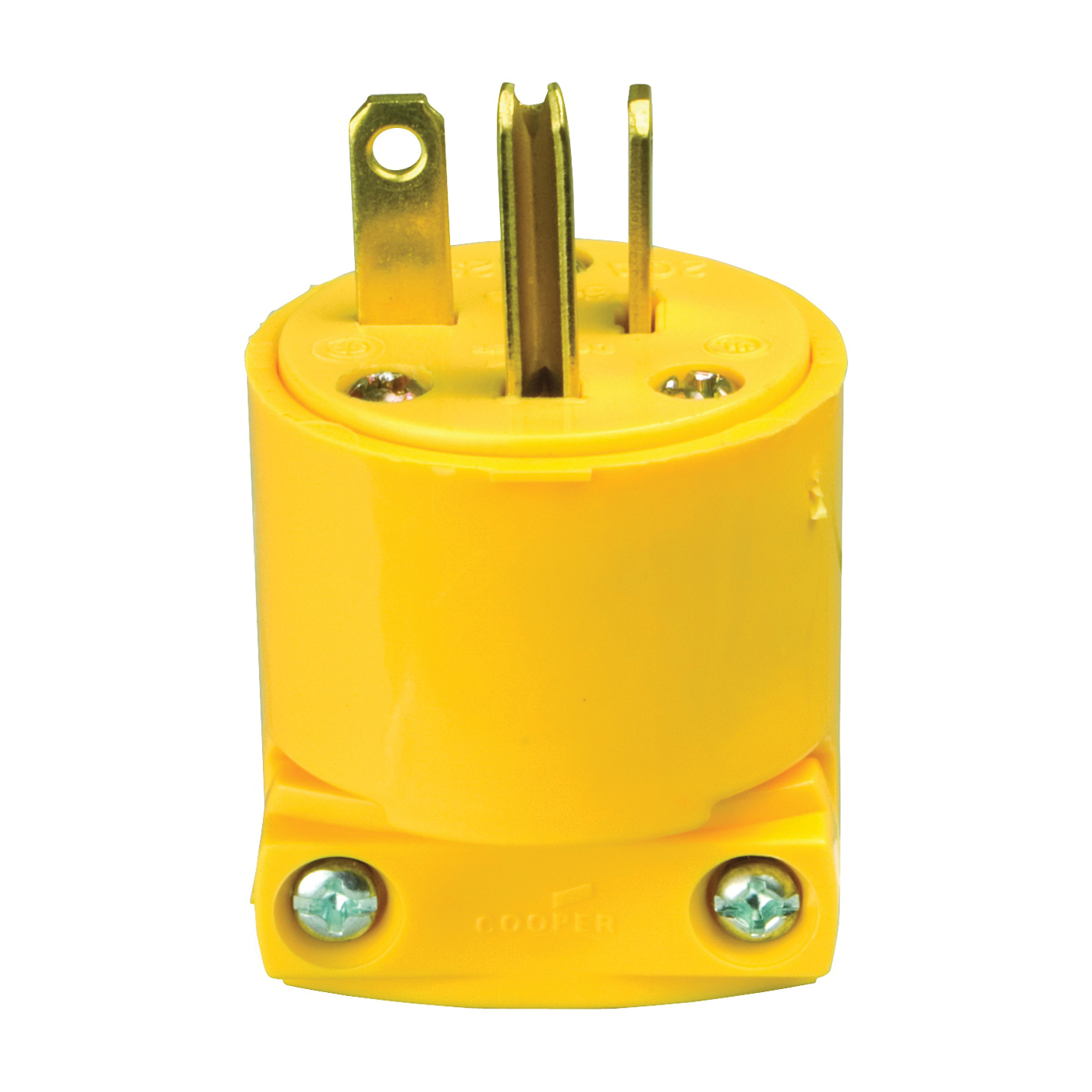

Eaton Wiring Devices 4509-BOX Electrical Plug, Straight Body, 1/4 to 21/32 in, 2-Pole, 20 A, 250 V, NEMA: NEMA 6-20
Promo Price:
Solid brass plug blades are firmly embedded in body. Resists chemical attack and is less brittle in extremely low temperatures. With terminal screw clamps. Combination Slot/Phillips head mounting and terminal screws for installation flexibility (Slot/Robertson screws in Canada where available). Terminal screws backed out, ready for wiring. Yellow color. Meets all UL 498 requirements.
| Cable/Wire Size | : | 1/4 to 21/32 in |
| Connection Type | : | Screw |
| Dimensions | : | 1.65 in L x 1.54 in W |
| Grounding Type | : | Grounded |
| Material | : | Thermoplastic/Vinyl |
| Mounting Type | : | Screw |
| Operating Temperature | : | -20 to 60 deg C |
| Type | : | Straight |
| Voltage Rating | : | 250 V |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Yellow |
| NEMA Configuration | : | NEMA 6-20 |
| Current Rating | : | 20 A |
