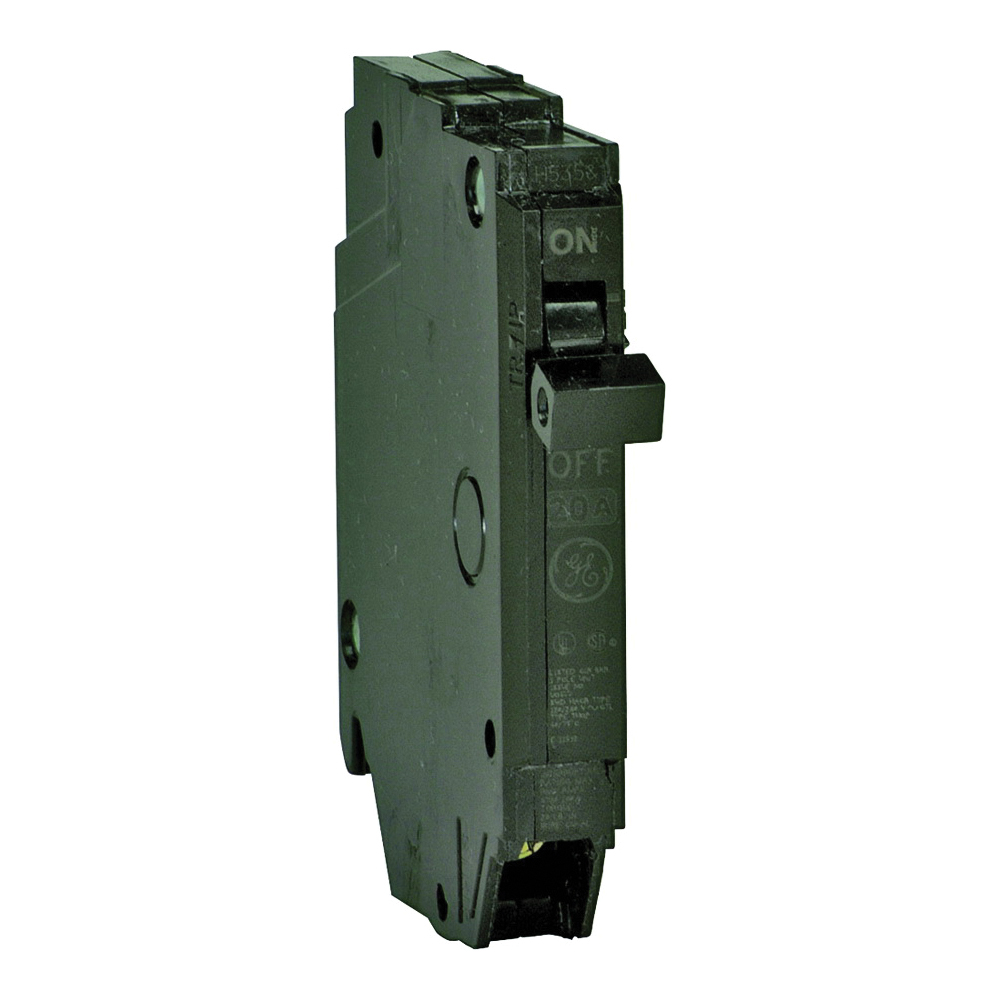

GE Industrial Solutions THQP140 Feeder Circuit Breaker, Type THQP, 40 A, 1 -Pole, 120/240 V, Plug Mounting
Promo Price:
Copper-to-copper connections, calibrated for optimum trip performance, heat-resistant thermoset cases and covers, cemented calibration screw. Nearly identical to Type THQL with the same design and performance, yet only taking up 1/2 the space, 1/2 in per pole. UL listed, HACR rated. 15 and 20 A SWD, switching duty rated, suitable for 120 V fluorescent lighting loads. 15 to 25 A #14 to 8 Cu or #12 to 8 Al AWG wire, 30 to 50 A #8 to 4 Cu or #8 to 2 Al AWG wire. 3-9/32 in H x 1/2 in W x 2-3/8 in D. 120/240 V, 10,000 AIR.
| Actuator Type | : | Toggle |
| Current Rating | : | 40 A |
| Dimensions | : | 3.28 in L x 0.5 in W x 2.58 in H |
| Frame Type | : | Q-Line |
| Interrupt Rating | : | 10 kA |
| Operating Frequency | : | 50/60 Hz |
| Operating Temperature | : | 60 to 75 deg C |
| Suitable for | : | Reverse Feed |
| Wire Size | : | 8 to 4 AWG |
| Type | : | Type THQP |
| Voltage Rating | : | 120/240 V |
| Number of Phases | : | 1 |
| Number of Poles | : | 1 |
| Trip Type | : | Non-Interchangeable |
| Terminal Type | : | Lug |
| Mounting Type | : | Plug |
