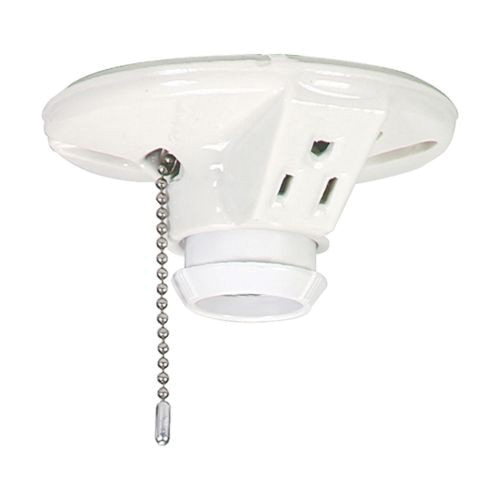

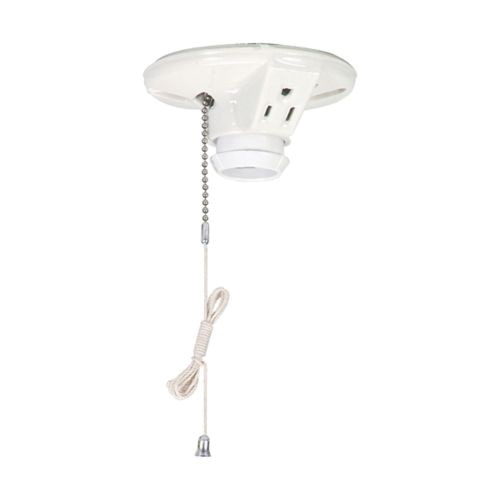

Eaton Wiring Devices 667-SP Lamp Holder, 4.5 in Dia x 2.14 in H Dimensions, 125 VAC, 660 W, White
Promo Price:
With 15 A 125 VAC outlet. High-strength insulator porcelain. Mounts on 4 in outlet boxes with breakout for 3-1/4 in box-mounting. Pull chain socket interior is removable. Includes ball chain, 3 ft cord, connector and end bell. Terminal screws are backed out ready for wiring without removing the interior. Dust ring protects against plaster and dirt. UL 496 Listed, NOM certified, meets CSA requirements. 15 A, 125 V, 660 W.
| Base Type | : | Medium |
| Connection Type | : | Screw |
| Current Rating | : | 15 A |
| Dimensions | : | 4.63 in Dia x 2.5 in H |
| Includes | : | NEMA 1-15P Plug, 3 W Outlet, (2) Screw Terminals and Pull Chain Switch |
| Mounting Type | : | Box |
| Type | : | Interior |
| Voltage Rating | : | 125 VAC |
| Wattage Rating | : | 660 W |
| Wire Size | : | 14 to 10 AWG |
| Wiring Type | : | Top |
| Color | : | White |
| Housing Material | : | Porcelain |
Catalog
