Milwaukee

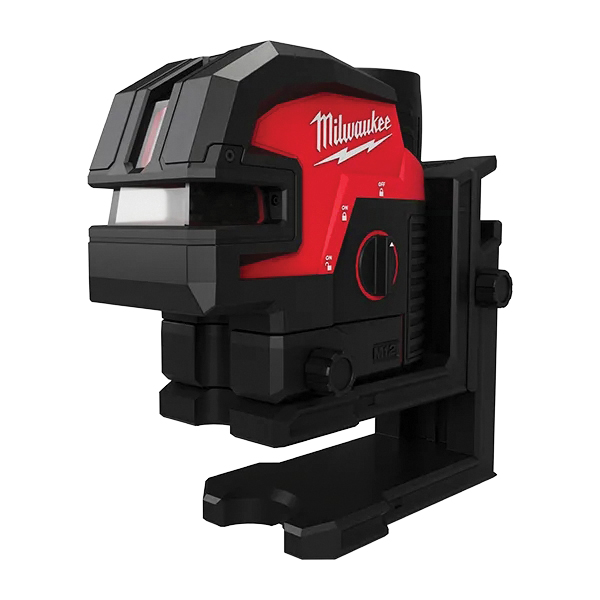

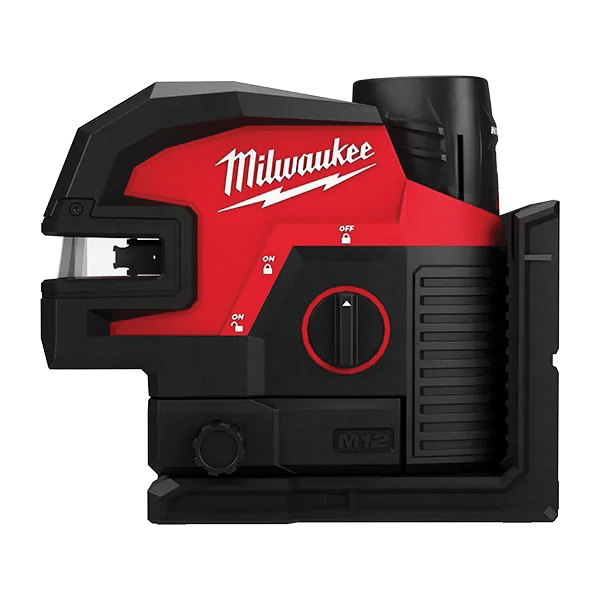

Milwaukee 3624-21 Laser Level Kit, 210 deg Horizontal, 165 deg Vertical, +/-1/8 in Accuracy, 2-Beam, Green Laser

  • Model Number: 3624-21
  • Store SKU: loading
  • Milwaukee 3624-21 Laser Level Kit, 210 deg Horizontal, 165 deg Vertical, +/-1/8 in Accuracy, 2-Beam, Green Laser

  • loading

    Promo Price: loading

  • Quantity
    • Availability:
      • Supplier SKU: loading
      • Web SKU: 103703495
    Milwaukee 3624-21

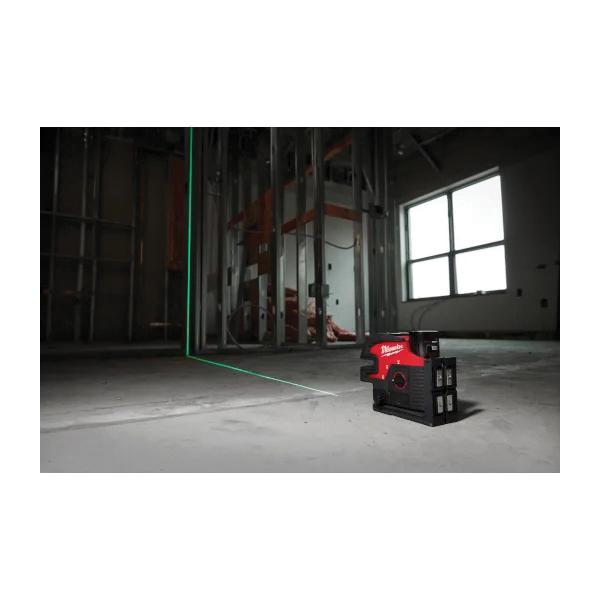

    Our M12™ green cross line and 4-points laser provides all day runtime and the best visibility in its class. Using our M12 REDLITHIUM™ 3.0 CP battery, users get nine plus hours of continuous runtime for ultimate productivity. The high intensity green laser offers our users superior visibility up to 125 ft for long range applications. The vertical and horizontal lines make alignment and level applications easy for our users, while the additional 4-points allow for quick transfers from floor to ceiling and squaring applications. The integrated magnetic bracket features micro control and pivots on the plumb point for easy and fast alignment. The amplified rare earth magnets provide a stronghold and will not slide on steel studs, while an integrated hang hole makes set-up easy and efficient in any environment. As part of the industry leading M12™ system, our laser is compatible with all M12™ batteries.

    Accuracy    :    +/-1/8 in
    Battery Type    :    Lithium-Ion
    Battery Voltage    :    12 V
    Dimensions    :    3.22 in W x 6.77 in D x 5.9 in H
    IP Rating    :    IP54
    Includes    :    (1) 3624-20 M12 Green Laser Cross Line and 4-Points, (1) 48-11-2430 M12 Redlithium 3.0 Compact Battery Pack, (1) 48-59-2401 M12 Lithium-Ion Battery Charger, (1) 48-35-1111 Responsive Laser Alignment Target, (1) Carrying Case
    Laser Projection Type    :    Horizontal, Vertical
    Leveling Type    :    Self Leveling
    Measuring Range    :    210 deg Horizontal, 165 deg Vertical
    Mounting Type    :    Tripod, Wall
    Number of Beams    :    2
    Laser Color    :    Green
    • Brightest green laser optimized for distance
    • Micro control, pivots on point

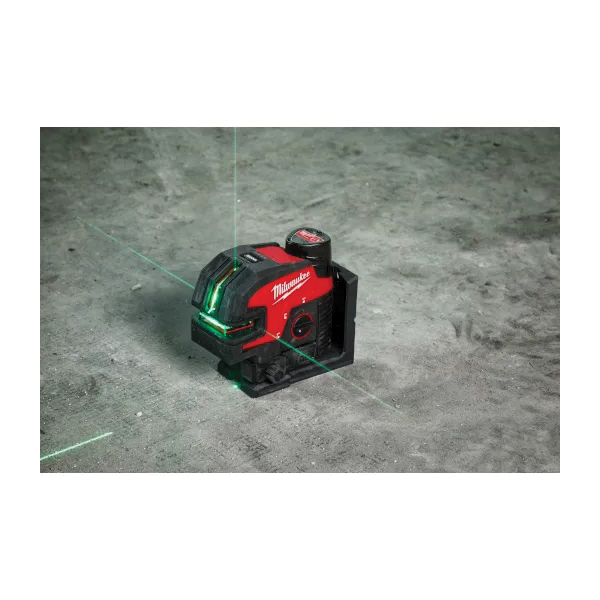

    • Vertical and horizontal lines plus 4-points to level, align, plumb and square
    • 125 ft working range
    • 210 deg horizontal fan angle, 165 deg vertical fan angle
    • pdfOwners/User Manual https://assets.unilogcorp.com/187/ITEM/DOC/Milwaukee_103703495_Owners_User_Manual.pdf

      {
