For new construction or renovation projects, the ultra thin MicroEdge lens downlight simplifies installation by installing directly into drywall or suspended ceilings without the need for a recessed housing or junction box, saving time and money. The HLB6 features five field selectable color temperatures and the textured lens provides smooth light distribution for general area lighting applications in low to medium height ceilings.
| Average Life |
: |
50, 000 hr |
| Ceiling Type |
: |
Insulated |
| Color Rendering Index (CRI) |
: |
90 |
| Color Temperature |
: |
2700, 3000, 3500, 4000, 5000 K |
| Color |
: |
White |
| Current Rating |
: |
0.09 A |
| Dimensions |
: |
6.125 in Dia x 3.15 in H |
| Dimmable |
: |
Dimmable |
| Driver Type |
: |
Constant Current |
| IP Rating |
: |
IP44 |
| Includes |
: |
LED Array, Heat Sink, Reflector, Prismatic Lens and Aluminum Trim Ring |
| Insulation Type |
: |
IC |
| Lamp Base |
: |
Integrated |
| Lamp Wattage |
: |
75 W |
| Lumens |
: |
800, 1000, 1200 Lumens |
| Mounting Type |
: |
Ceiling |
| Recessed Can Diameter |
: |
6 in |
| Trim Material |
: |
Aluminum |
| Trim Type |
: |
Slim |
| Voltage Rating |
: |
120 V |
| Wattage Rating |
: |
13.48 W |
| Lamp Type |
: |
LED |
| Finish |
: |
Matte |
- Round 6 in slim low-glare canless LED downlights with selectable colors and lumens
- 1/2 in thin fixture installs virtually anywhere and mounts directly to the ceiling, no housing required
- Lens and trim - slim die-cast trim with textured low-glare prismatic lens
- Color temperature (CCT) - five-color field-selectable (2700 K, 3000 K, 3500 K, 4000 K, 5000 K), 90 plus CRI
- Brightness (lumen select) - 900/1200 Lumens (nominal)
- Dimming - dims to 5% phase cut LE/TE (120 V input)

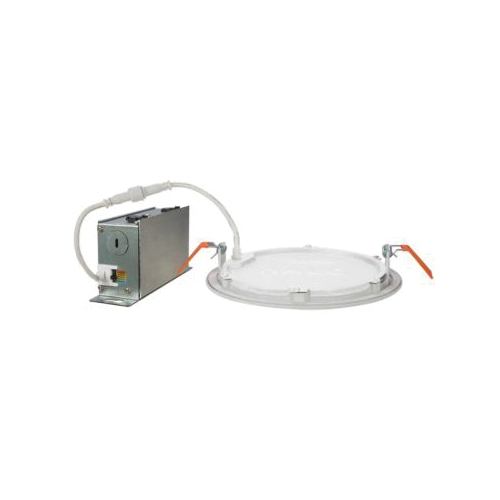

- Includes IC-rated fixture and remote driver/junction box
- Accessories include - new construction mounting frames, decorative overlays and extension cables (sold separately)
- Wet location-rated - for all application including showers and covered outdoor spaces
-
