ProLine Series

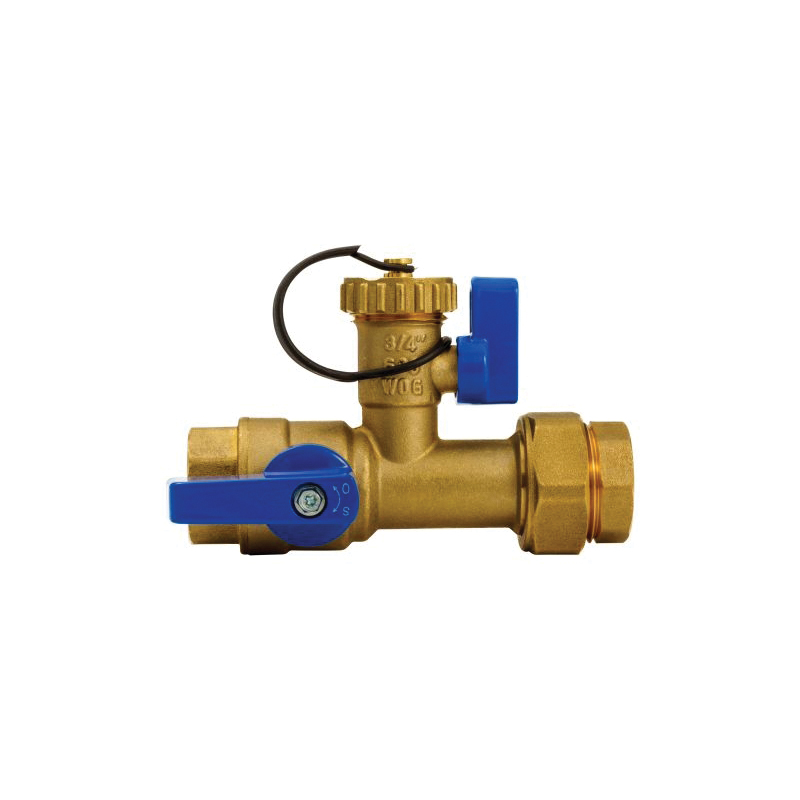

ProLine Series 102-120 Isolation Valve Kit, 3/4 in Connection, FIP, 125 psi Pressure, Brass Body

  • Model Number: 102-120
  • UPC: 032888188181
  • Store SKU: loading
  • ProLine Series 102-120 Isolation Valve Kit, 3/4 in Connection, FIP, 125 psi Pressure, Brass Body

  • loading

    Promo Price: loading

  • Quantity
    • Availability:
      • Supplier SKU: loading
      • Web SKU: 103819643
    ProLine Series 102-120

    ProLine Series 7700WH Isolation valve kit is designed to work with tankless water heaters. Replacing multiple fittings and connections from traditional water heaters, this kit features two quarter-turn valves and a brass relief valve that helps you connect to and maintain your tankless water heater.

    Dimensions    :    4.64 in L x 2.76 in W x 2.83 in H
    Includes    :    Pressure Relief Valve
    Pressure Rating    :    125 psi
    Temperature Rating    :    32 to 180 deg F
    Connection Size    :    3/4 in
    Connection Type    :    FIP
    Body Material    :    Brass
    • Hot and cold valves are rated up to 600 psi
    • Full port for maximum flow rate
    • Compact valve size suitable for most tankless water heater installations
    • Integrated drain valve for quick system maintenance
    • Lead-free forged brass body

      {
