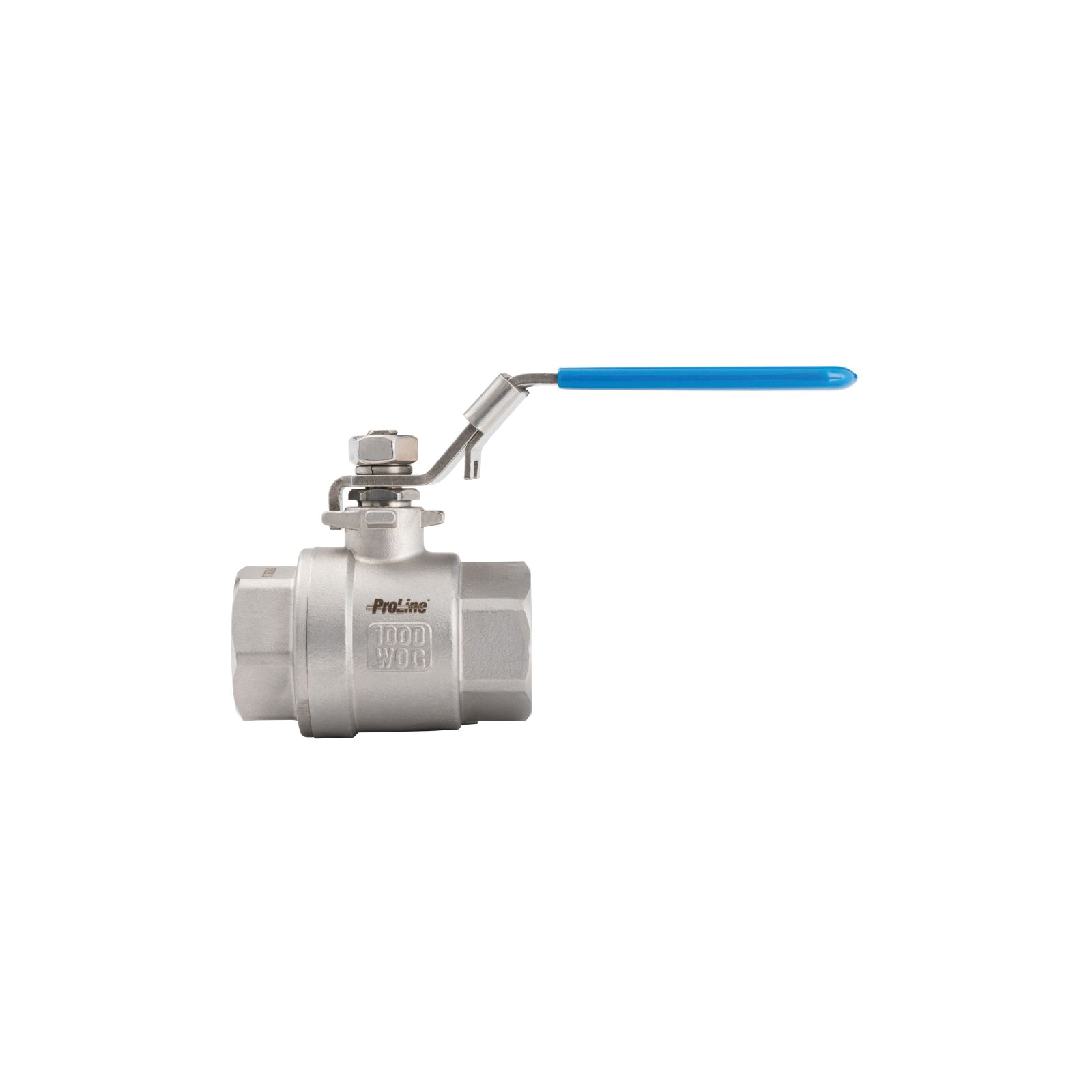

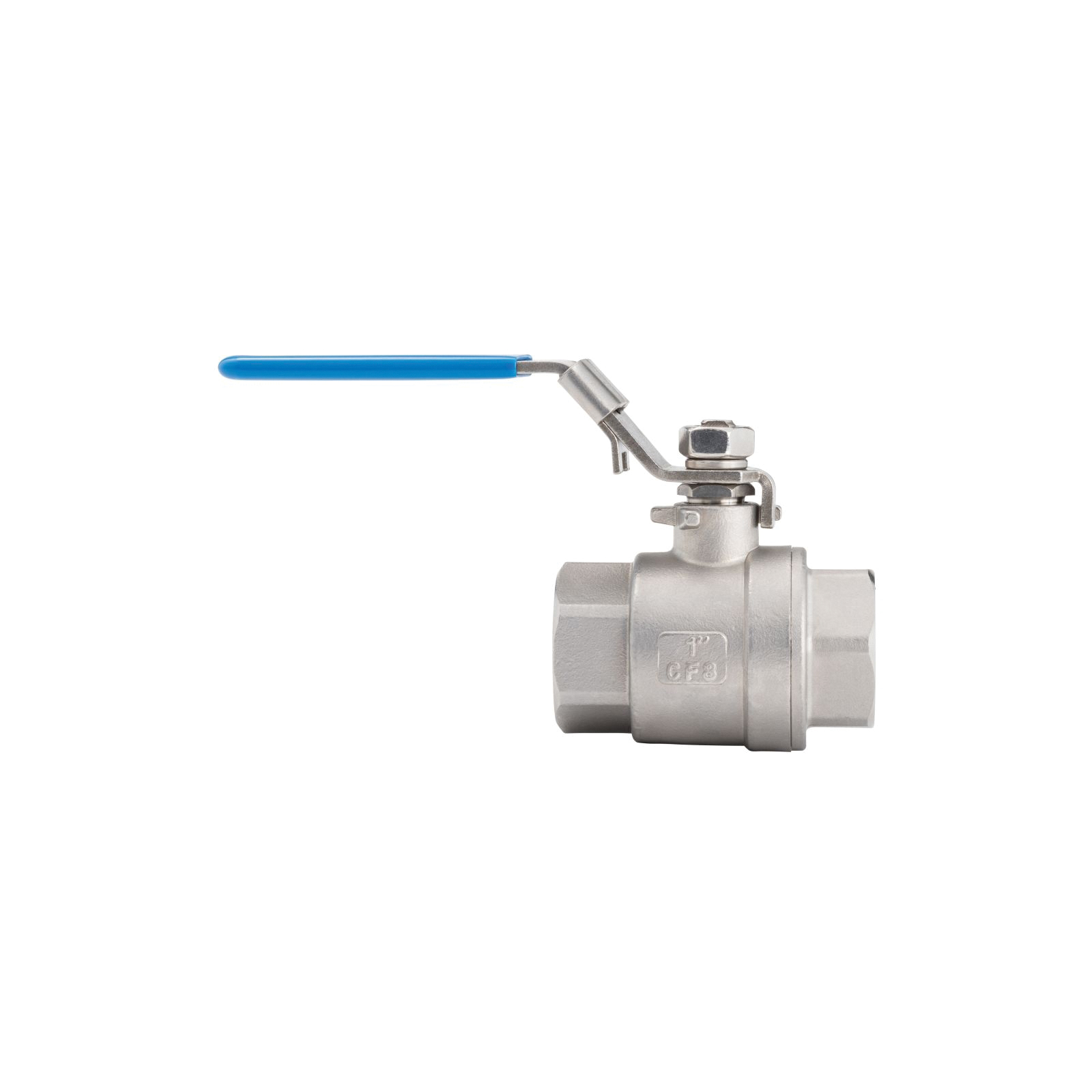

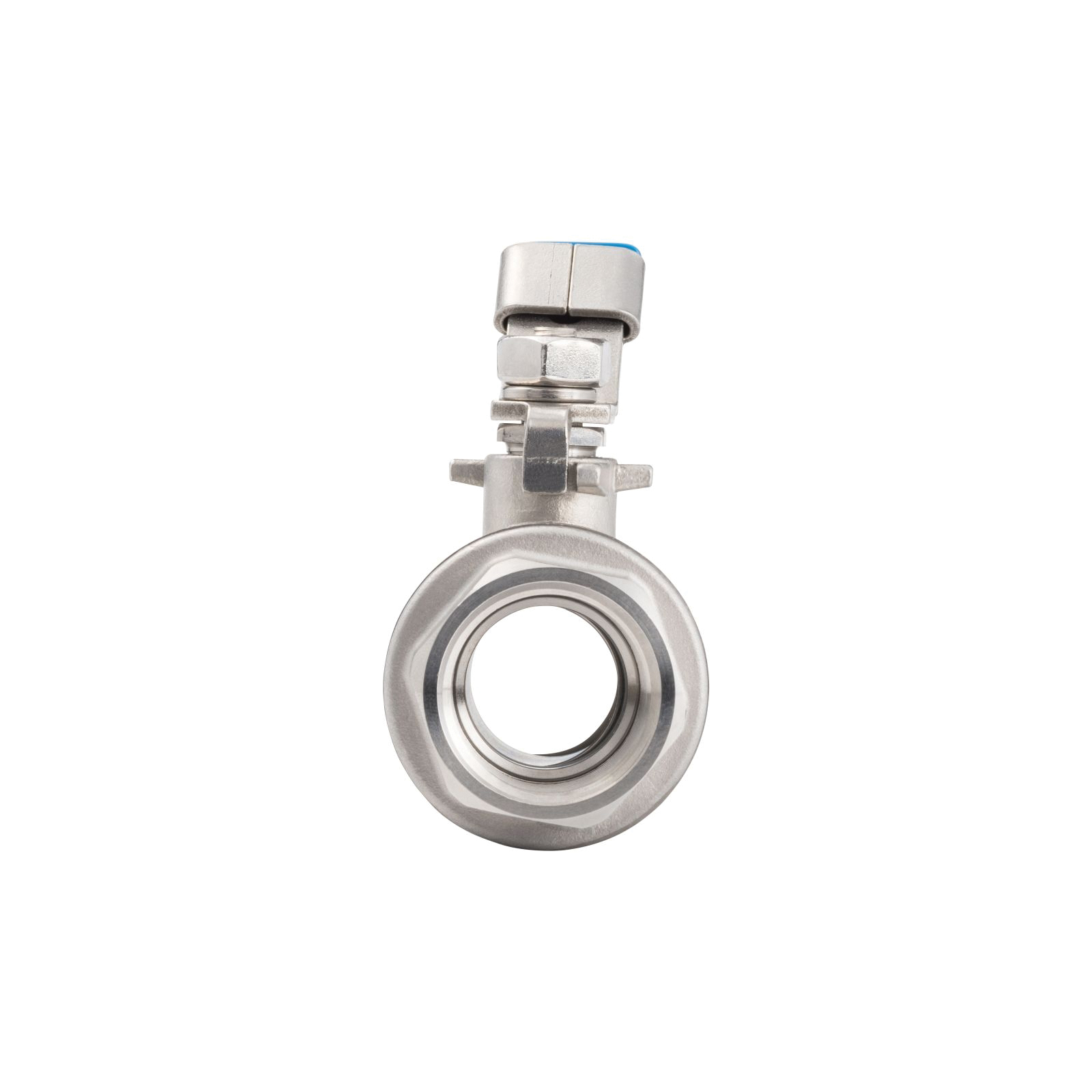

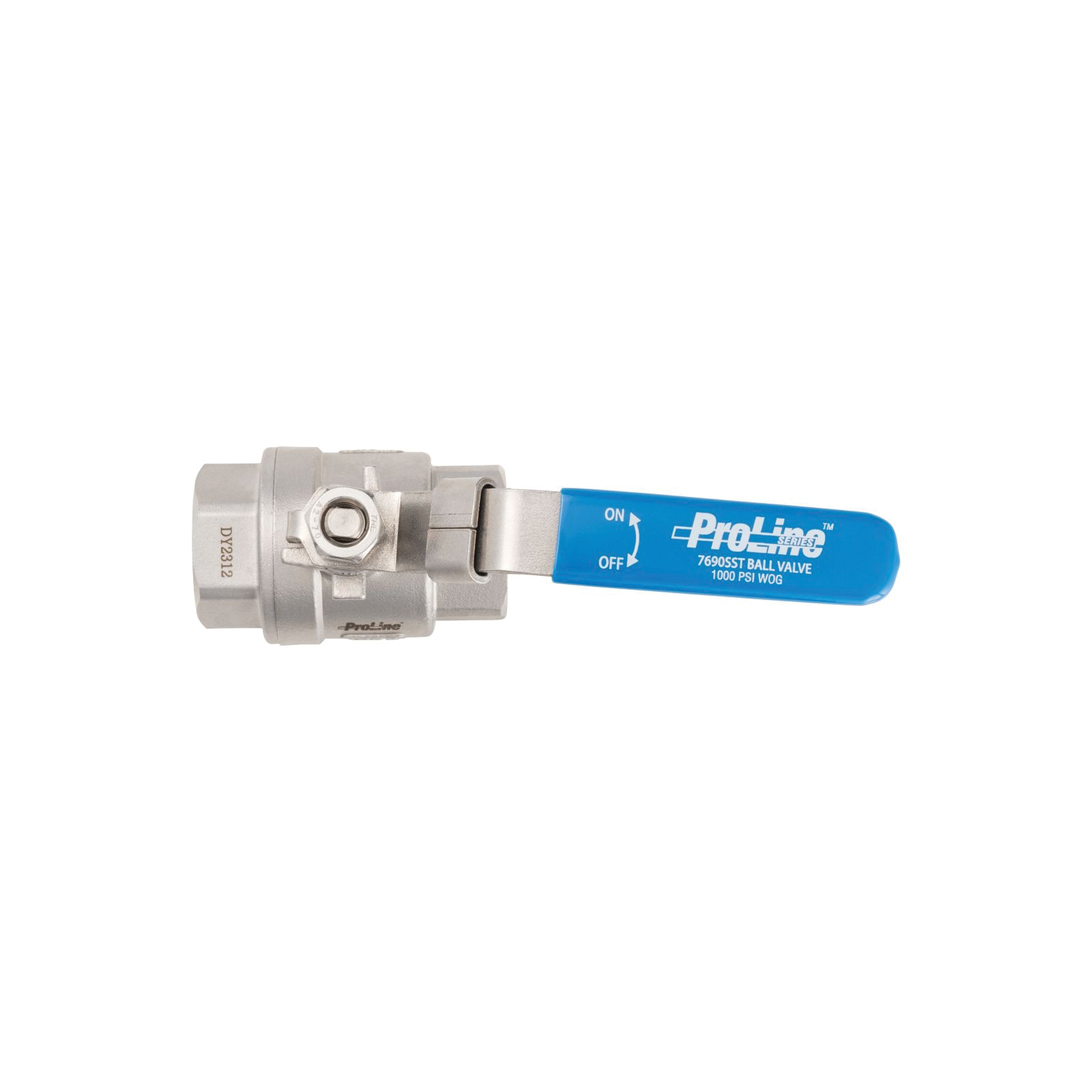

ProLine Series 7690SST Series 107-715SS Ball Valve with Locking Handle, 1 in Connection, FIP, 600 to 1000 psi Pressure

  • Model Number: 107-715SS
  • UPC: 195864012532
  • Store SKU: loading
  • ProLine Series 7690SST Series 107-715SS Ball Valve with Locking Handle, 1 in Connection, FIP, 600 to 1000 psi Pressure

  • loading

    Promo Price: loading

  • Quantity
    • Availability:
      • Supplier SKU: loading
      • Web SKU: 103819644
    ProLine Series 107-715SS

    ProLine Series 304 stainless steel ball valves are ideal for on/off flow control in high-corrosion environments. This valve's construction allows for a higher pressure and temperature rating compared to brass and has the added benefit of being lead-free, which is safe for potable water applications or other applications requiring a clean and reliable material. To facilitate easy on/off operations, this valve features a handle that is easy-to-grasp and requires only a quarter-turn to open and close the valve. Another feature of this valve is the packing gland, which allows for quick fixes to stop any stem leaks with the use of a simple wrench. Designed with a blowout-proof stem, this valve is built to handle any unforeseen pressure surges. An added safety feature is the locking handle, which only allows for a secure operation by authorized personnel.

    Dimensions    :    6.34 in L x1.99 in W x 3.72 in H
    Media    :    Water
    Pressure Rating    :    600 to 1000 psi
    Temperature Rating    :    -4 to 392 deg F
    Connection Size    :    1 in
    Connection Type    :    FIP
    Actuator Type    :    Handle
    Body Material    :    Stainless Steel
    • 304 stainless steel construction supports use in corrosive environments
    • Full port design minimizes turbulence within the plumbing system
    • Locking handle provides an easy means of protecting your water flow
    • Packing gland supports longer valve life, allowing for stopping leaks from the stem
    • Blowout-proof stem design supports a more durable valve
    • Quarter-turn function allows for efficient on/off operation and is not designed to throttle flow
    • Ball valves are designed for on/off operations, not for throttling flow

      {
