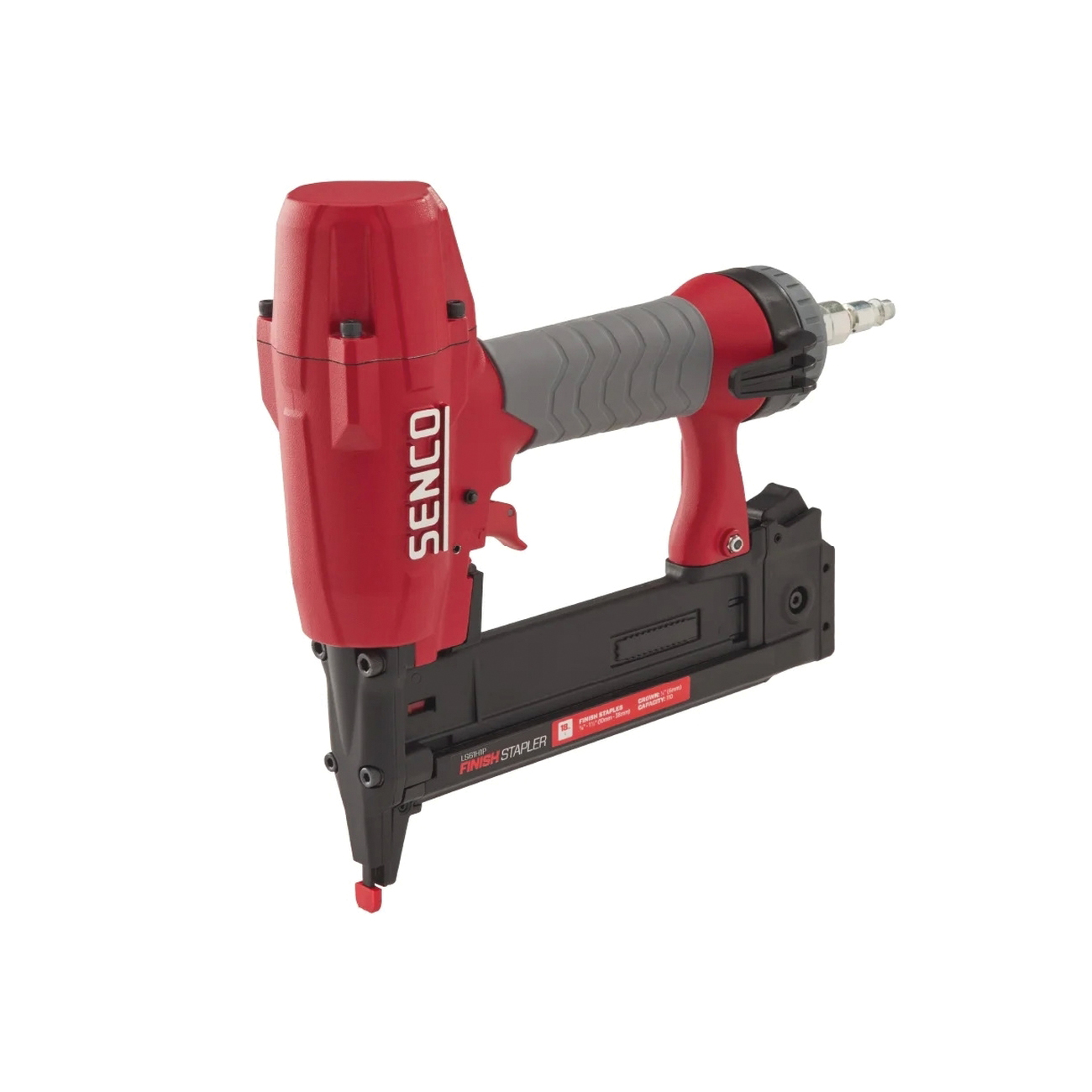

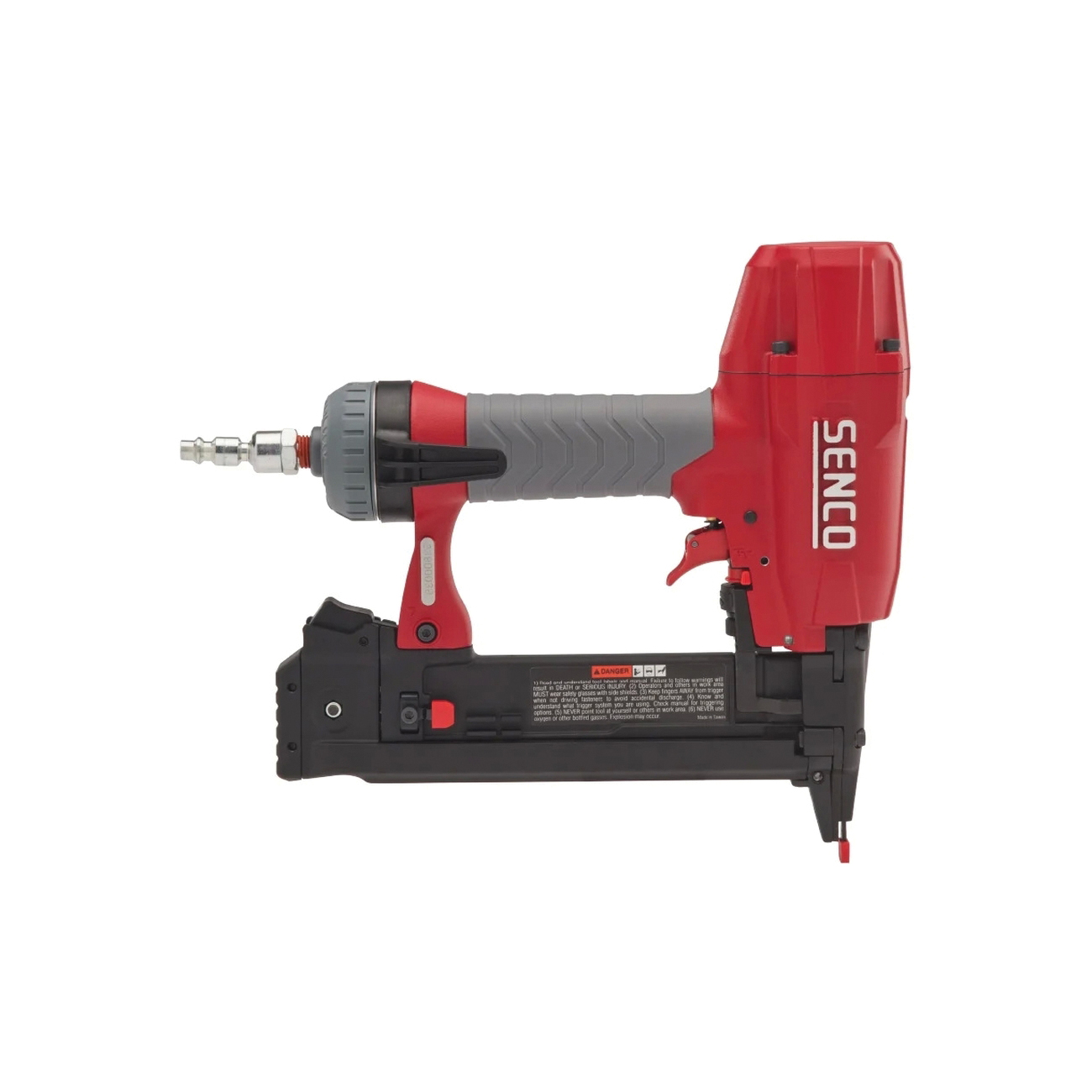

The LS61H1P is an 18 ga finish stapler that drives 1/4 in crown staples from 3/8 to 1-1/2 in L. Convenience features like SENCO's oil-less design eliminates the need for routine lubrication. This stapler is ideal for woodworking, cabinetry and both internal and external trim applications.
| Air Consumption |
: |
2.4 scfm |
| Air Pressure |
: |
70 to 120 psi |
| Crown Width |
: |
1/4 in |
| Dimensions |
: |
10-1/4 in L x 2-1/2 in W x 9-1/2 in H |
| Exhaust Type |
: |
360 deg Adjustable |
| Firing Mode |
: |
Selectable Trigger |
| Housing Material |
: |
Aluminum |
| Includes |
: |
Carrying Case and 1/4 in Fitting |
| Air Inlet Size |
: |
1/4 in |
| Magazine Capacity |
: |
110 |
- Oil-less design - routine lubrication is not required. Saving you time with daily maintenance
- Selectable trigger - easily switch between contact or sequential firing modes
- Tool-free depth adjustment - quickly change drive depth for flush or countersunk drives
- 360 deg adjustable exhaust - directs air away from the operator and work surface
- Rotatable belt hook - provides quick right/left hand access when needed
- Ergonomic overmolded grip - reduces fatigue and increases control of the tool
- No-mar pad - protects the work surface from being scratched or damaged, extra no-mar pad included
- Reload indicator - allows the user to quickly identify when it's time to reload (not visible, on reverse side of tool)
- Swivel plug - for added maneuverability
- Aluminum main body - durable and lightweight
-
Line Drawing
https://assets.unilogcorp.com/187/ITEM/DOC/Senco_103807365_Line_Drawing.pdf
-
Owners/User Manual
https://assets.unilogcorp.com/187/ITEM/DOC/Senco_103807365_Owners_User_Manual.pdf
