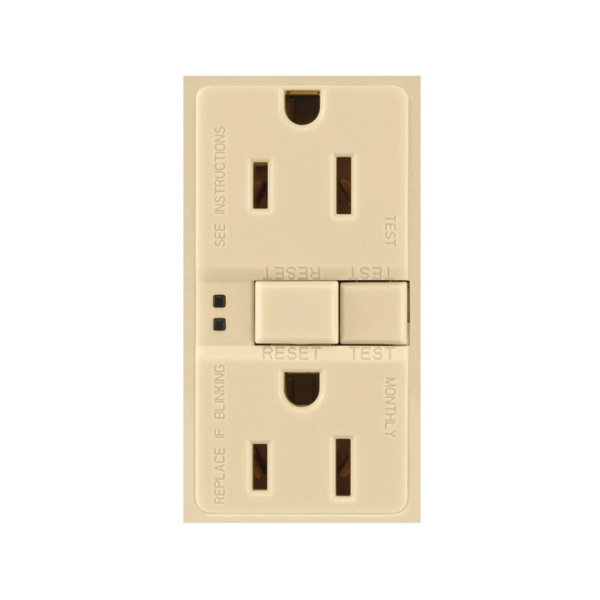

Eaton Wiring Devices SGF15V GFCI Duplex Receptacle, Polypropylene, Ivory, 2-Pole, 15 A, 125 V, Back, Side Wiring, 3-Wire
Promo Price:
Eaton's Arrow Hart line of GFCI receptacles ensure electrical shock protection with periodical auto-matic testing. If no GFCI protection is present, the receptacle will render itself inoperable and a red indicator light will glow notifying the user there is no power and the device must be replaced. GFCIs provide state-of-the-art, dependable electrical shock protection. In addition to being tested to the highest standards to help ensure safety, Arrow Hart GFCIs will deny power and prevent re-setting if the device is no longer able to provide safe, protected power.
California residents see Prop 65 WARNINGS
| Dimensions | : | 4.2 in L x 1.68 in W x 1.27 in D |
| Frequency Rating | : | 60 Hz |
| Includes | : | Wallplate |
| Material | : | Polypropylene |
| Mounting Type | : | Wall |
| Operating Temperature | : | -35 to 66 deg C |
| Voltage Rating | : | 125 V |
| Wire Size | : | 14 to 10 AWG |
| Wiring Type | : | Back, Side |
| Number of Poles | : | 2 |
| Number of Wires | : | 3 |
| Color | : | Ivory |
| NEMA Configuration | : | 5-15R |
| Current Rating | : | 15 A |
