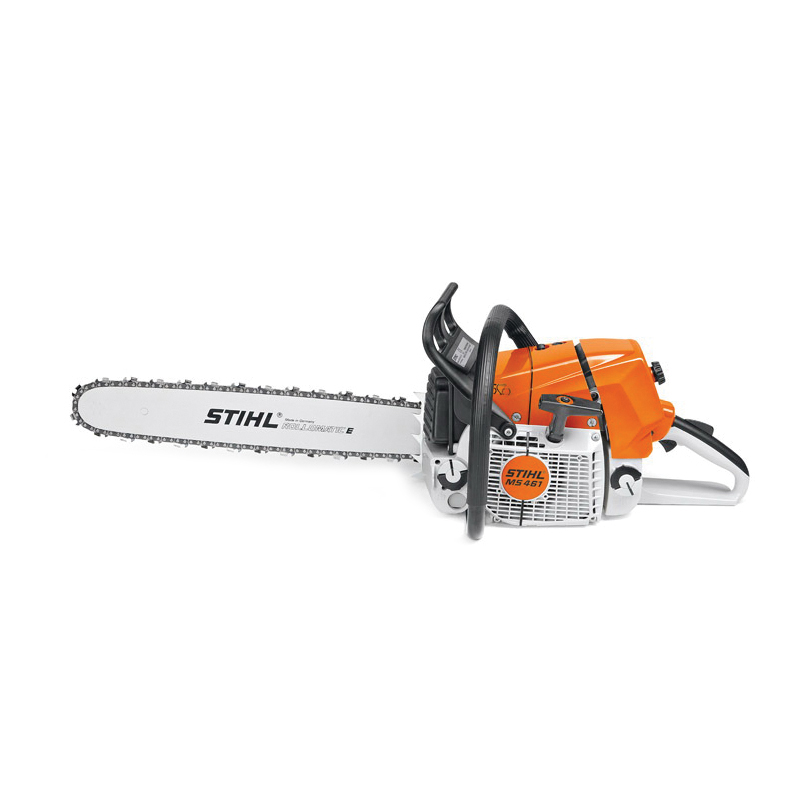

This powerful professional chainsaw is the successor to the MS 460 and is ideal for users in the forestry, agricultural and arborist markets. It features a low emission stratified charge engine with delayed stratified scavenging, reduced fuel consumption by up to 20%, improved air filtration with HD2 filter element, excellent straight line control and extremely low-vibration levels. Experience the new generation of powerful, professional fuel efficient chainsaws with reduced emissions from Stihl.
| Bar/Chain Pitch |
: |
3/8 in |
| Chain Type |
: |
RS |
| Control Type |
: |
Lever |
| Engine Displacement |
: |
76.5 cc |
| Engine Specifications |
: |
4.5 kW |
| Fuel Tank Capacity |
: |
27.1 oz |
| Fuel Type |
: |
Gas |
| Handle Type |
: |
Anti-Vibration |
| Oil Tank Capacity |
: |
11 oz |
| Engine Type |
: |
2-Stroke |
| Bar/Chain Length |
: |
16 in |
| Bar/Chain Gauge |
: |
0.05 in |
- Precisely calculated buffer zones minimize the transfer of engine and saw chain vibrations to the front and rear handles
- A fuel-free layer of air is created between the burned charge in the combustion chamber and the fresh charge in the crankcase, reducing the amount of fuel lost during the charge cycle
- STIHL long-life air filtration systems with pre-separation achieve perceptibly longer filter life compared with conventional filter systems
- The damping element in the ElastoStart™ special starter grip alternately absorbs and releases force according to the compression pattern
- Special caps to open and close the tank cap quickly, easily and without tools
- The decompression valve is part of the easy starting system
- The STIHL Ematic™ system reduces the consumption of chain lubricant by up to 50%, depending on the type of wood and the cutting attachment used
- The tensioning screw can be found on the side of chainsaw through the sprocket cover, this removes the need for contact with the sharp saw chain
- All important functions such as start, choke, throttle and stop are operated via a single lever
- The exact chain oil output can be adjusted manually for varying conditions, allowing for a reduction of up to 50%
