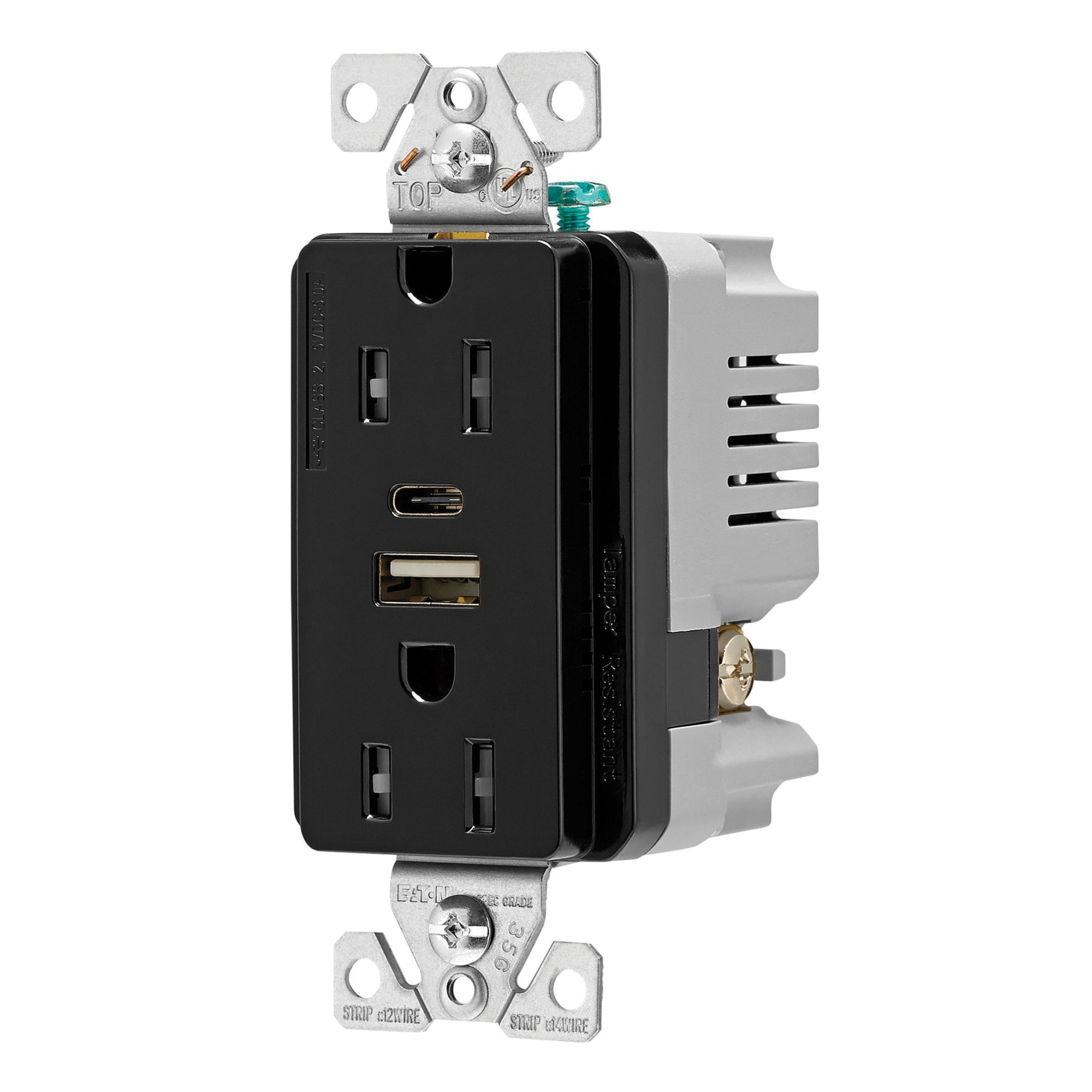

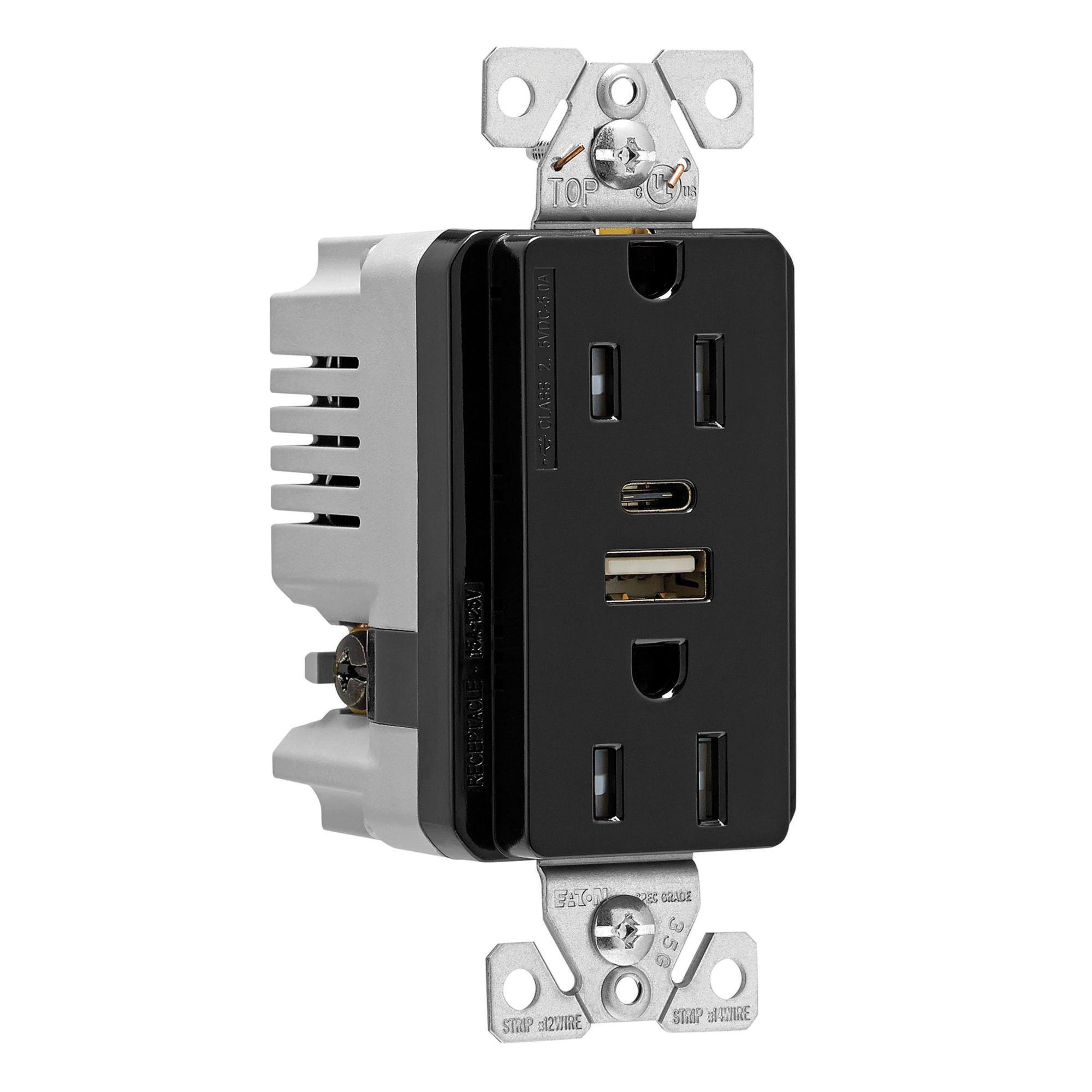

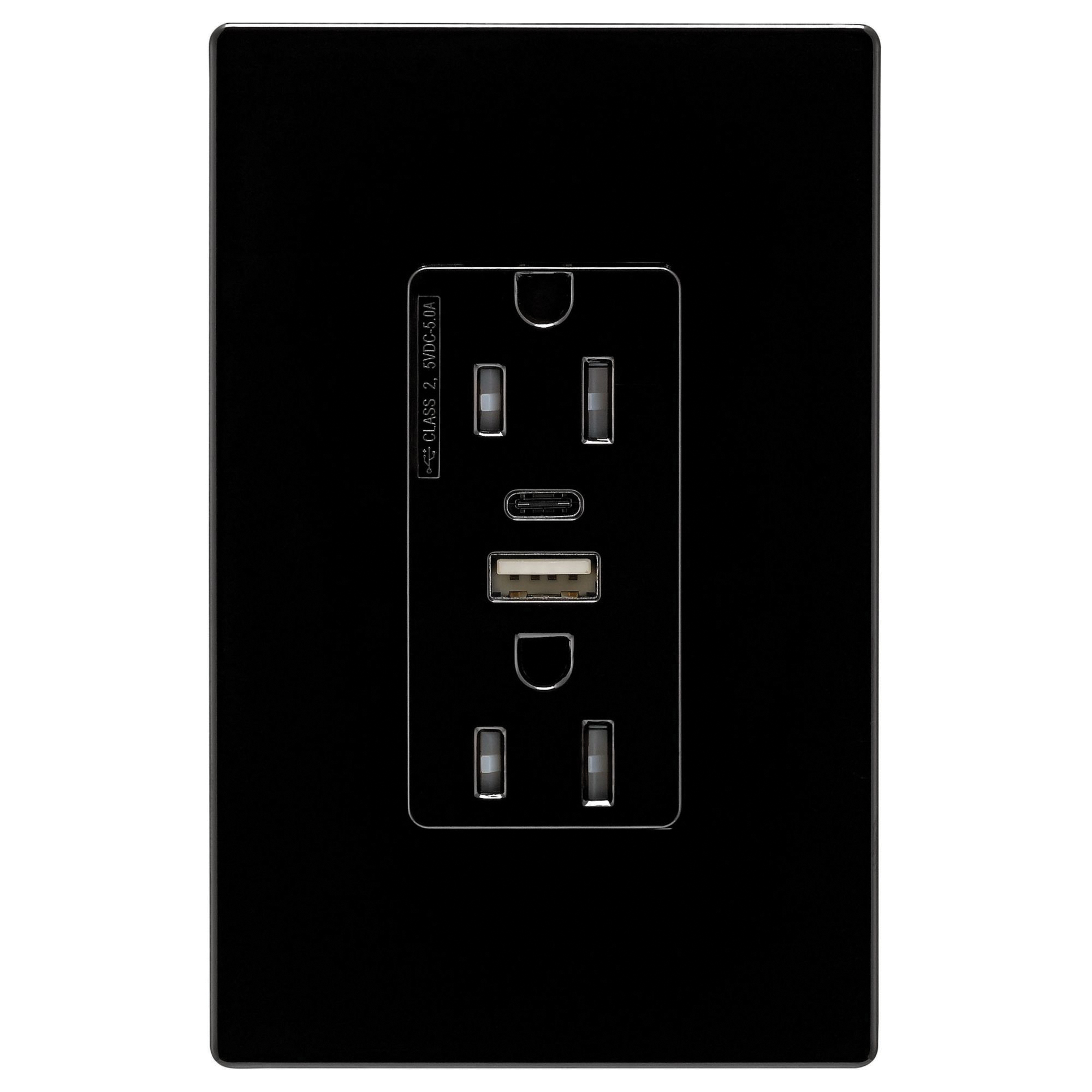

Eaton Combination USB Receptacle, Tamper-Resistant, 125 V, 15 A, Wattage Rating: 25 W, Number of Poles: 2, Number of Wires: 3, Number of USB Ports: 2, USB Type: Type A, C, Wire Size: 14 to 12 AWG, NEMA Configuration: 5-15R, Flush Mounting, Thermoplastic, Black, Dimensions: 4.19 in H x 1.3 in W x 1.4 in D
| Dimensions |
: |
4.19 in H x 1.3 in W x 1.4 in D |
| Material |
: |
Thermoplastic |
| Mounting Type |
: |
Flush |
| Type |
: |
Tamper-Resistant |
| USB Type |
: |
Type A, C |
| Voltage Rating |
: |
125 V |
| Wattage Rating |
: |
25 W |
| Wire Size |
: |
14 to 12 AWG |
| Number of Poles |
: |
2 |
| Number of Wires |
: |
3 |
| Number of USB Ports |
: |
2 |
| Color |
: |
Black |
| NEMA Configuration |
: |
5-15R |
| Current Rating |
: |
15 A |
- Standard AC receptacle with USB-A and USB-C ports rated at a combined 5 A
- USB-C charging port charges most electronic devices that comply with the USB-C standard
- 25 W total output power rating
- Tamper-resistant shutters provide compliance with NEC article 406.12 that states that all 15 A and 20 A, 125 V receptacles installed in dwelling units must be tamper-resistant
- Replaces a standard duplex receptacle
- Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
- Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
- Steel mounting strap is zinc-plated for added corrosion resistance
- Convenient patented built-in wire strippers speed installation
- Triple wipe blade contacts and double wipe ground contacts to insure long-term blade retention
-
Specification Sheet
https://assets.unilogcorp.com/187/ITEM/DOC/Eaton_103819017_Specification_Sheet.pdf
