    Eaton Wiring Devices TRUSBC15V-BOX
    Eaton Wiring Devices

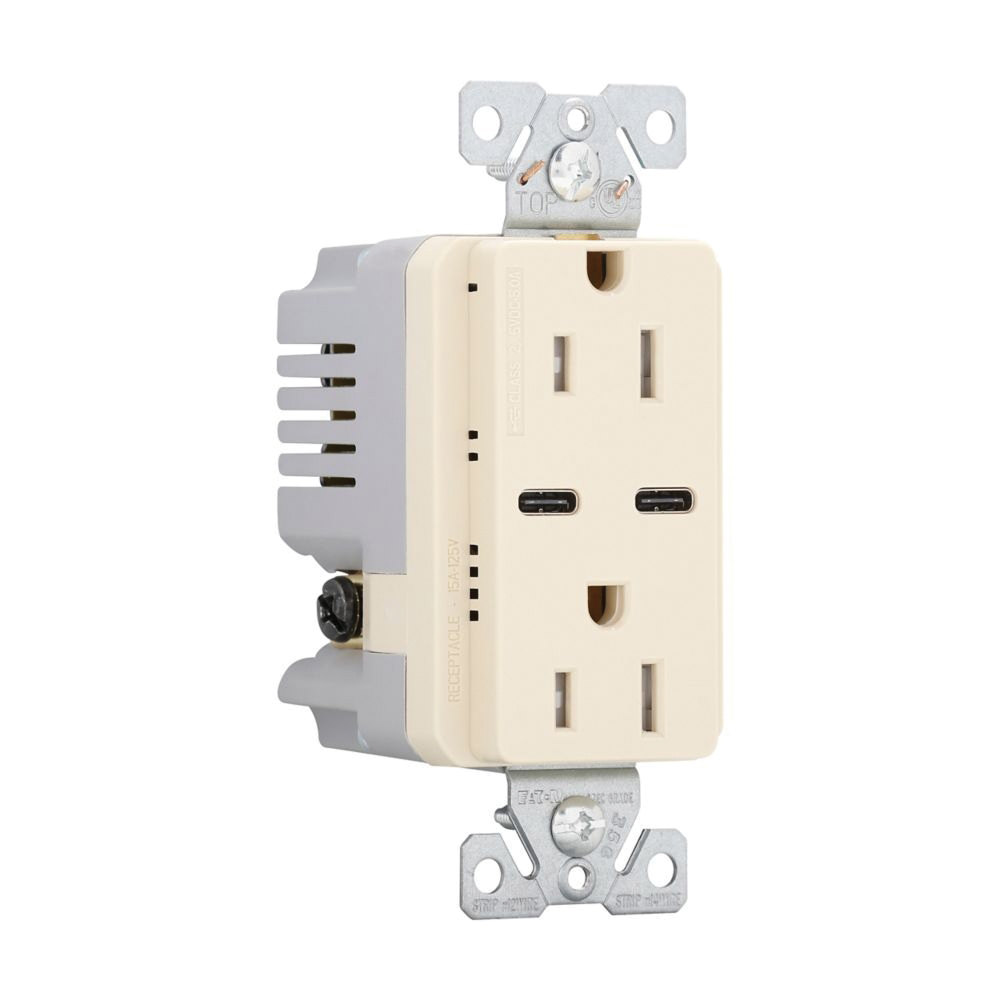

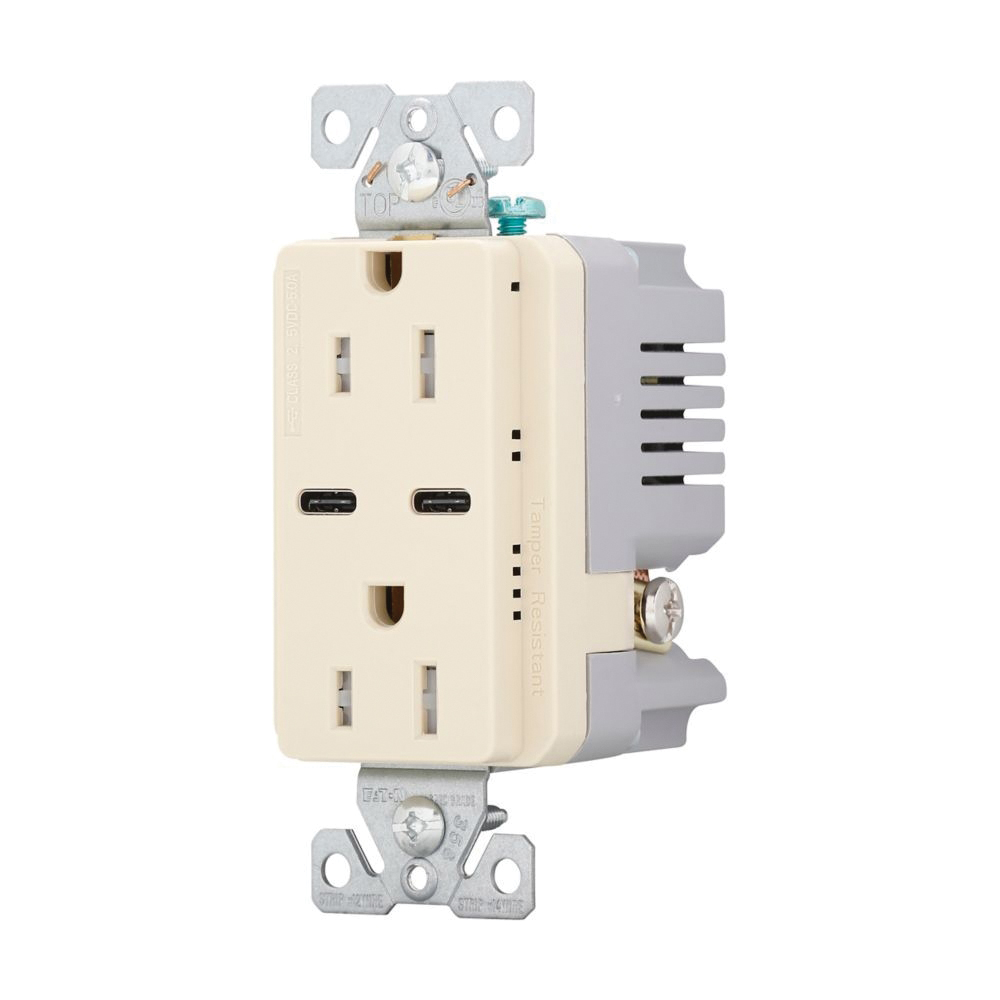

    Eaton Wiring Devices TRUSBC15V-BOX Combination USB Charger with Duplex Receptacle, 2-Pole, 15 A, 125 V, 2-USB Port

    • Model Number: TRUSBC15V-BOX
    • UPC: 032664753299
    • Store SKU: loading

    • Eaton Wiring Devices TRUSBC15V-BOX Combination USB Charger with Duplex Receptacle, 2-Pole, 15 A, 125 V, 2-USB Port

    • loading

      Promo Price: loading

    • Quantity
      • Availability:
      • Add To Cart
        Add to Favorite List
        • Supplier SKU: loading
        • Web SKU: 103821782
      Eaton Wiring Devices TRUSBC15V-BOX

      Eaton Wiring Devices Combination USB Charger with Duplex Receptacle, Tamper-Resistant, 125 V, 15 A, Frequency Rating: 130 kHz, Number of Poles: 2, Number of Wires: 3, Number of USB Ports: 2, USB Type: Type C, Wiring Type: Back, Grounding, Screw Terminal, Side, Wire Size: 14 to 12 AWG, NEMA Configuration: NEMA 5-15R, Operating Temperature: -4 to 140 deg F, Flush Mounting, Thermoplastic, Ivory, Dimensions: 4.19 in H x 1.3 in W x 1.4 in D

      Dimensions    :    4.19 in H x 1.3 in W x 1.4 in D
      Frequency Rating    :    130 kHz
      Material    :    Thermoplastic
      Mounting Type    :    Flush
      Operating Temperature    :    -4 to 140 deg F
      Type    :    Tamper-Resistant
      USB Type    :    Type C
      Voltage Rating    :    125 V
      Wire Size    :    14 to 12 AWG
      Wiring Type    :    Back, Grounding, Screw Terminal, Side
      Number of Poles    :    2
      Number of Wires    :    3
      Number of USB Ports    :    2
      Color    :    Ivory
      NEMA Configuration    :    NEMA 5-15R
      Current Rating    :    15 A
      • Standard AC receptacle with two USB-C ports rated at a combined 5 A
      • Dual USB-C charging ports charge most electronic devices that comply with the USB-C standard
      • Tamper-resistant shutters provide compliance with 2017 NEC Article 406.12 that states that all 15 and 20 A, 125 V receptacles installed in dwelling units must be tamper-resistant
      • Replaces a standard duplex receptacle
      • Automatic grounding system eliminates need for bonding jumper in grounded metal enclosure, provides redundant measure of ground continuity where jumper is used
      • Thermoplastic top and back body are virtually unbreakable to deliver years of durable performance
      • Steel mounting strap is zinc-plated for added corrosion resistance
      • Convenient patented built-in wire strippers speed installation
      • Triple wipe blade contacts and double wipe ground contacts to insure long-term blade retention

        {
