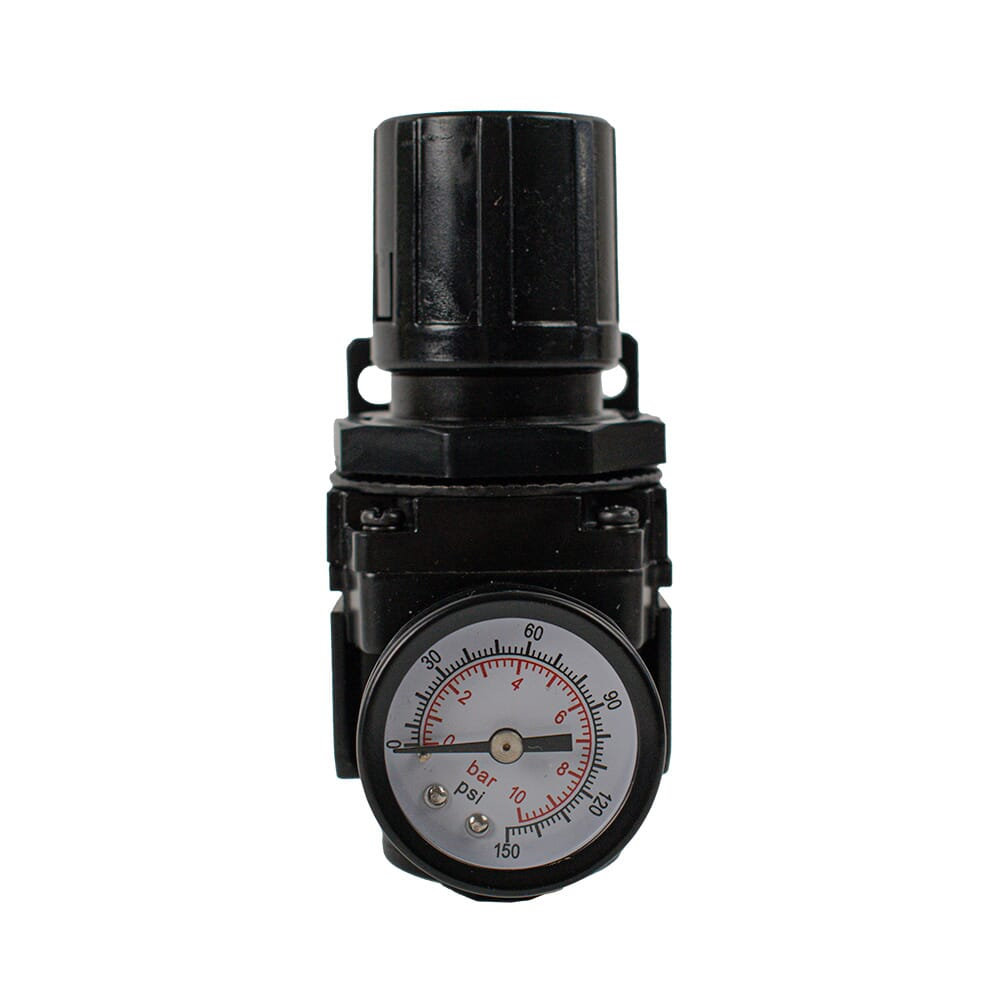

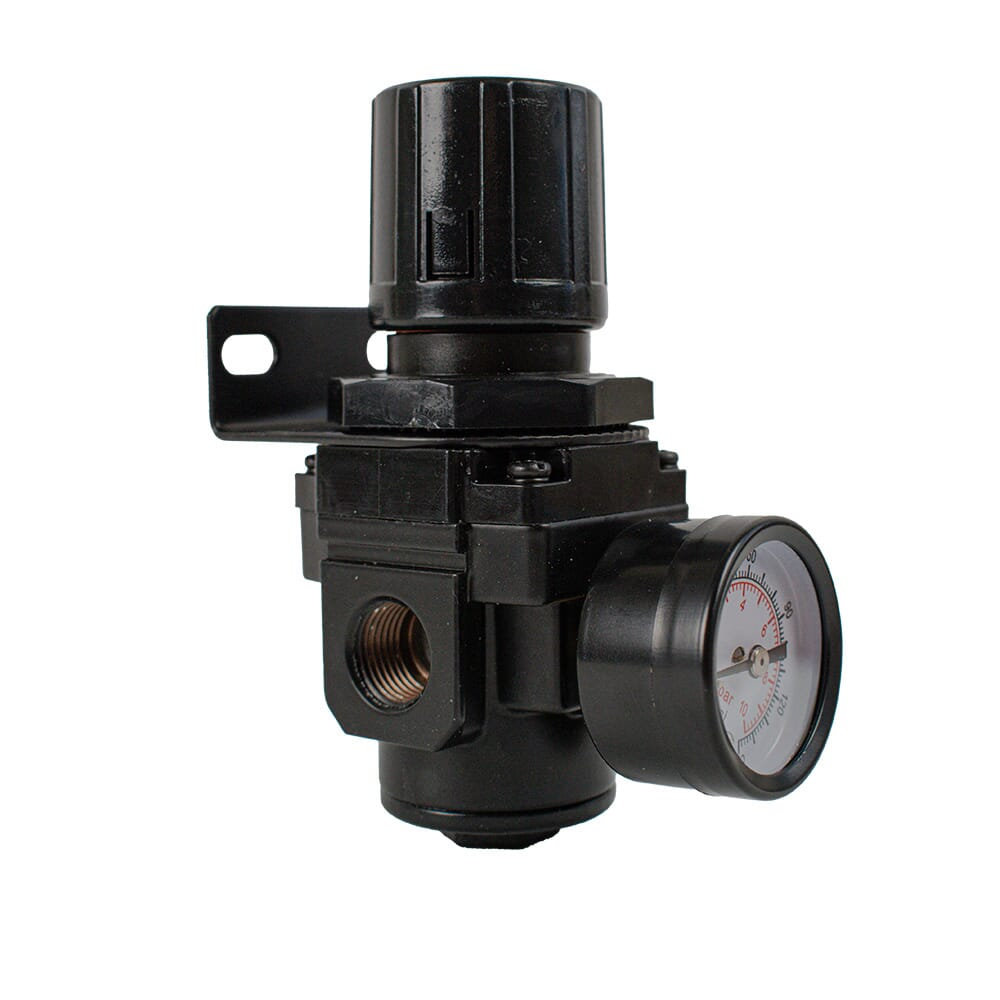

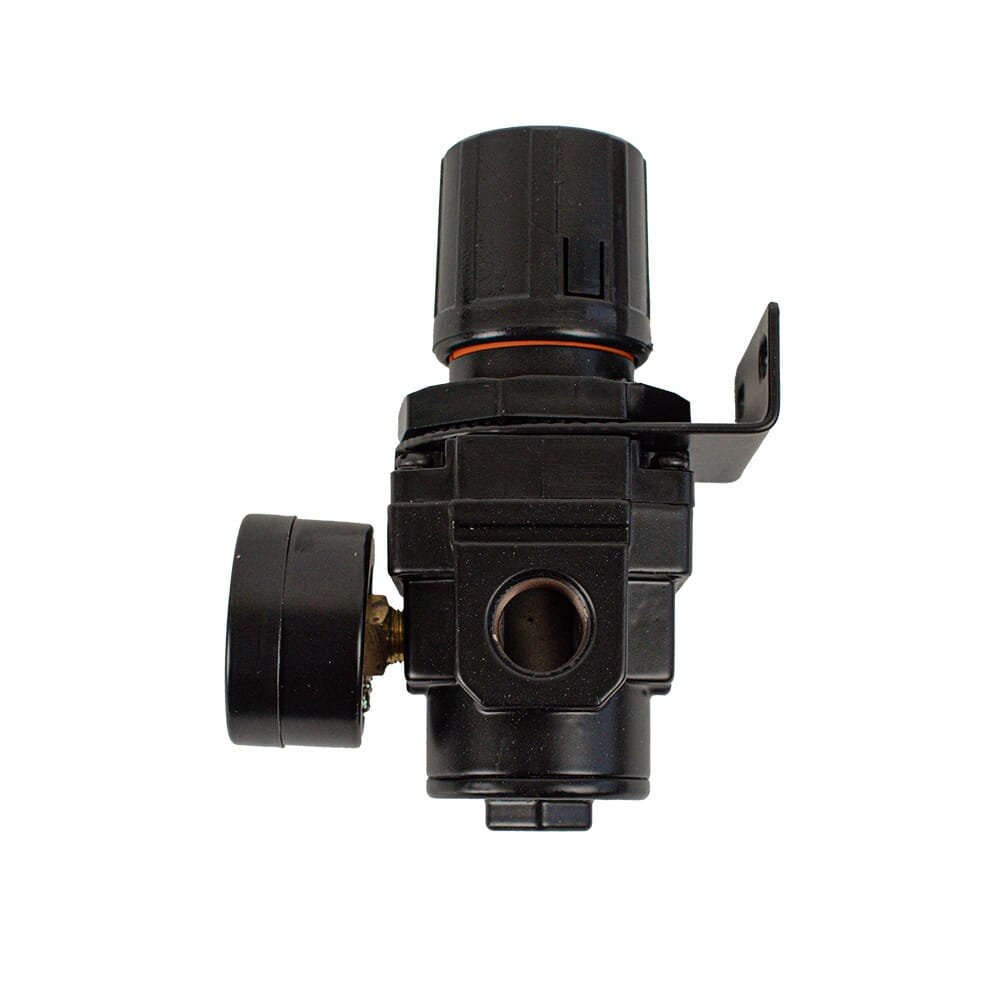

Full-size regulator with 3/8 in FNPT, 80 cfm at 215 psi, adjustable output ranging from 5 to 150 psi. Secondary aspiration plus balanced valve provides quick response and accurate pressure regulation. Rolling diaphragm for extended life. Reverse flow.
| Dimensions | : | 2.15 in H x 3.85 in W x 6.15 in D |
| Material | : | Plastic |
| Specifications | : | 250 psig Maximum Inlet Pressure, 140 deg F Maximum Operating Temperature, 3/8 in FNPT Connection, 5 to 150 psi Output Range, 80 cfm Flow Rate |
| Suitable For | : | Compressors Up to 10 hp |
